GPAW + WannierBerri: Magnetism and spin-orbit coupling (bcc Fe)
In GPAW the spin-orbit coupling (SOC) is treated non-self-consistently. Therefore, there is no need to add it before wannierization. Instead, we can wannierised the collinear magnetic calculation and then add SOC in the wannierized Hamiltonian. Only after that we can specify the spin axis and compute the bandstructure and other properties (like AHC)
This also has the advantage that the Wannier functions are real (since they respect the time-reversal symmetry which is present in each spin channel separately) and respect all symmetries of the crystal structure, even those which are broken by the magnetization direction.
Prerequisites
Make sure you have installed the following packages:
pip install wannierberri gpaw ase irrep
Setup the parallelization
[ ]:
import numpy as np
from ase import Atoms
from gpaw import GPAW, PW, FermiDirac, MixerSum
from wannierberri.parallel import Parallel, Serial
parallel_env= Parallel(num_cpus=16)
2025-10-22 19:13:54,127 INFO util.py:154 -- Missing packages: ['ipywidgets']. Run `pip install -U ipywidgets`, then restart the notebook server for rich notebook output.
initializing ray with {'num_cpus': 16}
2025-10-22 19:13:56,144 INFO worker.py:1918 -- Started a local Ray instance. View the dashboard at http://127.0.0.1:8265
(Kpoint_and_neighbours_ray pid=606049) Warning: symmetrization did not converge in 100 iterations, final changes 0.38537401482960104, 0.3853737656757285
(Kpoint_and_neighbours_ray pid=606049) Warning: symmetrization did not converge in 100 iterations, final changes 0.3882069376449266, 0.3882068906892813
(Kpoint_and_neighbours_ray pid=606049) Warning: symmetrization did not converge in 100 iterations, final changes 0.3898311038547878, 0.389830759573306
(Kpoint_and_neighbours_ray pid=606049) Warning: symmetrization did not converge in 100 iterations, final changes 0.3909326094039763, 0.39093216408953
(Kpoint_and_neighbours_ray pid=606049) Warning: symmetrization did not converge in 100 iterations, final changes 0.39205905922021406, 0.3920583550825143
(Kpoint_and_neighbours_ray pid=606049) Warning: symmetrization did not converge in 100 iterations, final changes 0.39308362371275407, 0.3930835425809099
Step 1: Gpaw calculation
loading the GPAW calculators
If you want to skip the GPAW calculation, you can just load the pre-calculated calculators
[ ]:
# calc_scf = GPAW("gpaw/Fe-scf.gpw")
# calc_nscf = GPAW("gpaw/Fe-nscf-irred-444.gpw")
# calc_bands = GPAW("gpaw/Fe-bands-path.gpw")
calc_scf = GPAW("gpaw/Fe-scf.gpw")
calc_nscf = GPAW("./Fe-nscf-irred-444.gpw")
calc_bands = GPAW("./Fe-bands-path.gpw")
self-consistent calculation
[2]:
a = 2.87 # Angstrom - lattice constant for bcc Fe
m = 2.2 # Bohr magneton - spin magnetic moment per atom
seed = "Fe"
lattice = a * np.array([[1, 1, 1], [-1, 1, 1], [-1, -1, 1]]) / 2
fe = Atoms('Fe',
scaled_positions=[(0, 0, 0)],
magmoms=[m],
cell=lattice,
pbc=True)
calc_scf = GPAW(mode=PW(600),
xc='PBE',
occupations=FermiDirac(width=0.01),
kpts={'size': (8,8,8),},
txt=f'Fe_scf.txt')
fe.calc = calc_scf
e = fe.get_potential_energy()
calc_scf.write(f'{seed}-scf.gpw')
Non-self-consistent calculation in the irreducible Brillouin zone
Now we get the list of irreducible k-points (using irrep.SpaceGroup object) and perform a non-self-consistent calculation only on these k-points. Note, that here we use all symmetries of the crystal structure, even those which are broken by the magnetization direction, because they are still symmetries for each spin channel separately (including the time-reversal symmetry).
[3]:
from irrep.spacegroup import SpaceGroup
sg = SpaceGroup.from_gpaw(calc_scf)
kpoints_irred = sg.get_irreducible_kpoints_grid([4, 4, 4])
calc_nscf = calc_scf.fixed_density(
kpts=kpoints_irred,
nbands=30,
convergence={'bands': 24},
txt=f'{seed}-nscf.txt')
calc_nscf.write(f'{seed}-nscf-irred-444.gpw', mode='all')
typat used for spacegroup detection (accounting magmoms): [26]
Compute the dft bandstructure along a high-symmetry path
This is done to compare with the wannierized bandstructure later.
[5]:
path_str = "GHPNGP"
calc_bands = calc_scf.fixed_density(
nbands=30,
symmetry='off',
random=True,
kpts={'path': path_str, 'npoints': 100},
txt=f'{seed}-bands-path.txt',
convergence={'bands': 24})
calc_bands.write(f'{seed}-bands-path.gpw', mode='all')
[6]:

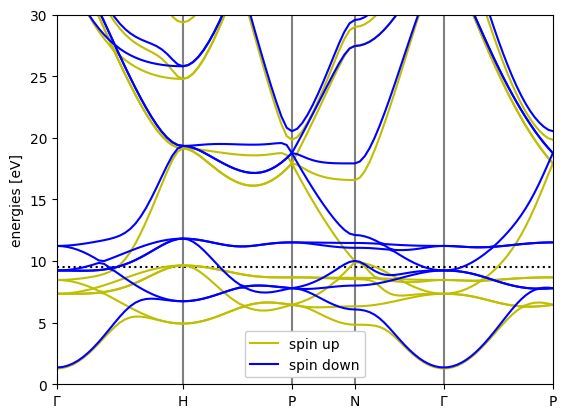

bs_dft = calc_bands.band_structure()
bs_dft.plot(show=True, emin=0,emax=30.0)
[6]:
<Axes: ylabel='energies [eV]'>
Step 2: Wannierization
In this case we use sp3d2 and t2g projections on each iron atom. One can also use the conventional s,p,d orbitals.
[7]:
from irrep.spacegroup import SpaceGroup
from wannierberri.symmetry.projections import Projection, ProjectionsSet
from gpaw import GPAW
# gpaw_calc = calc_nscf #GPAW( "./Fe-nscf-irred-444.gpw")
sg = SpaceGroup.from_gpaw(calc_nscf)
projection_sp3d2 = Projection(position_num=[0, 0, 0], orbital='sp3d2', spacegroup=sg)
projection_t2g = Projection(position_num=[0, 0, 0], orbital='t2g', spacegroup=sg)
proj_set = ProjectionsSet([projection_sp3d2, projection_t2g])
typat used for spacegroup detection (accounting magmoms): [26]
create the “w90 files”
Here we are NOT using the gpaw-wannier90 interface, and actually not creating the w90 files, but directly access the wavefunctions from the GPAW calculation, use symmetry operations from irrep, and create the necessary data to be used with wannierberri. Those files still retain the same naming convention as the w90 files for consistency, but htey are binary npz files, which are convenient to work with numpy
After creating those data, it is written to the disk, so that one can later load it. But be careful - if you change anything (e.g. the projections) - do not forget to remove those files, otherwise you will load the old data! For that reason, here we set ‘read_npz_list=[]’ to force the creation of new data.
[8]:
from wannierberri.w90files.w90data_soc import Wannier90dataSOC
w90data = Wannier90dataSOC.from_gpaw(
calculator=calc_nscf,
projections=proj_set,
mp_grid=(4,4,4),
read_npz_list=[],
spacegroup=sg,
)
w90data.select_bands(win_min=-100,
win_max=50)
Using 'projections' for both spin up channel.
No projections_down provided; using projections_up for both spin channels.
finding num points from 2 projections
got irreducible=None, mp_grid=(4, 4, 4), seedname=wannier_soc-spin-0, files=['mmn', 'eig', 'amn', 'symmetrizer'], read_npz_list=[], write_npz_list=None, projections=ProjectionsSet with 9 Wannier functions and 0 free variables
Projection 0, 0, 0:['sp3d2'] with 6 Wannier functions on 1 points (6 per site)
Projection 0, 0, 0:['t2g'] with 3 Wannier functions on 1 points (3 per site), unk_grid=None, normalize=True
kpt_latt_grid=[[0. 0. 0. ]
[0. 0. 0.25]
[0. 0. 0.5 ]
[0. 0.25 0.5 ]
[0.25 0.25 0.25]
[0.25 0.25 0.5 ]
[0.25 0.75 0.25]
[0.5 0.5 0.5 ]]
mpgrid = [4 4 4], 8
detected grid=(np.int64(4), np.int64(4), np.int64(4)), selected_kpoints=[0 1 2 3 4 5 6 7]
self.irreducible=True
mpgrid = [4 4 4], 8
/home/stepan/github/wannier-berri-work/wannier-berri-soc-nscf/wannierberri/w90files/w90data.py:151: UserWarning: detected grid (np.int64(4), np.int64(4), np.int64(4)) od 64 kpoints, but only 8 kpoints are available.assuming that only irreducible kpoints are needed.
warnings.warn(f"detected grid {grid} od {np.prod(grid)} kpoints, "
orbitals = ['sp3d2']
orbitals = ['t2g']
calculating Wannier functions for sp3d2 at [[0 0 0]]
calculating Wannier functions for t2g at [[0 0 0]]
D.shape [(8, 96, 6, 6), (8, 96, 3, 3)]
num_wann 9
D_wann_block_indices [[0 6]
[6 9]]
saving to wannier_soc-spin-0.symmetrizer.npz :
saving to wannier_soc-spin-0.eig.npz :
Creating amn. Using projections_set
ProjectionsSet with 9 Wannier functions and 0 free variables
Projection 0, 0, 0:['sp3d2'] with 6 Wannier functions on 1 points (6 per site)
Projection 0, 0, 0:['t2g'] with 3 Wannier functions on 1 points (3 per site)
saving to wannier_soc-spin-0.amn.npz :
mpgrid = [4 4 4], 64
NK= 64, selected_kpoints = [0 1 2 3 4 5 6 7], kptirr = [0 1 2 3 4 5 6 7]
Shells found with weights [0.41728623] and tolerance 1.9302775581455037e-16
saving to wannier_soc-spin-0.mmn.npz :
got irreducible=None, mp_grid=(4, 4, 4), seedname=wannier_soc-spin-1, files=['mmn', 'eig', 'amn', 'symmetrizer'], read_npz_list=[], write_npz_list=None, projections=ProjectionsSet with 9 Wannier functions and 0 free variables
Projection 0, 0, 0:['sp3d2'] with 6 Wannier functions on 1 points (6 per site)
Projection 0, 0, 0:['t2g'] with 3 Wannier functions on 1 points (3 per site), unk_grid=None, normalize=True
kpt_latt_grid=[[0. 0. 0. ]
[0. 0. 0.25]
[0. 0. 0.5 ]
[0. 0.25 0.5 ]
[0.25 0.25 0.25]
[0.25 0.25 0.5 ]
[0.25 0.75 0.25]
[0.5 0.5 0.5 ]]
mpgrid = [4 4 4], 8
detected grid=(np.int64(4), np.int64(4), np.int64(4)), selected_kpoints=[0 1 2 3 4 5 6 7]
self.irreducible=True
mpgrid = [4 4 4], 8
orbitals = ['sp3d2']
orbitals = ['t2g']
calculating Wannier functions for sp3d2 at [[0 0 0]]
calculating Wannier functions for t2g at [[0 0 0]]
D.shape [(8, 96, 6, 6), (8, 96, 3, 3)]
num_wann 9
D_wann_block_indices [[0 6]
[6 9]]
saving to wannier_soc-spin-1.symmetrizer.npz :
saving to wannier_soc-spin-1.eig.npz :
Creating amn. Using projections_set
ProjectionsSet with 9 Wannier functions and 0 free variables
Projection 0, 0, 0:['sp3d2'] with 6 Wannier functions on 1 points (6 per site)
Projection 0, 0, 0:['t2g'] with 3 Wannier functions on 1 points (3 per site)
saving to wannier_soc-spin-1.amn.npz :
mpgrid = [4 4 4], 64
NK= 64, selected_kpoints = [0 1 2 3 4 5 6 7], kptirr = [0 1 2 3 4 5 6 7]
Shells found with weights [0.41728623] and tolerance 1.9302775581455037e-16
saving to wannier_soc-spin-1.mmn.npz :
number of bands = 30
saving to wannier_soc.soc.npz :
selected_bands = [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19]
selected_bands = [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19]
Do the wannierization
at this step we also specify the frozen window, number of iterations, and whether to use site symmetry and localization. (when starting from irreducible BZ, site-symmetry is required anyway)
We also may use the outer window via w90data.select_bands if needed
In this case, both spin channels will be wannierised separately, starting from the same projections.There is also an option to specify different projections for different spin channels if needed. (See MnTe tutorial)
[9]:
w90data.wannierise(
froz_min=-1000,
froz_max=20,
num_iter=100,
print_progress_every=10,
sitesym=True,
localise=True,
)
Symmetrizer_Uirr initialized for ikirr=0, kpt=0, [0. 0. 0.] with 96 symmetries, max error in included blocks: 1.3056926080711268e-14 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=1, kpt=1, [0. 0. 0.25] with 8 symmetries, max error in included blocks: 6.753223014464258e-16 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=2, kpt=2, [0. 0. 0.5] with 16 symmetries, max error in included blocks: 8.760422255333325e-16 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=3, kpt=3, [0. 0.25 0.5 ] with 4 symmetries, max error in included blocks: 3.37900622702967e-15 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=4, kpt=4, [0.25 0.25 0.25] with 16 symmetries, max error in included blocks: 9.352431718031025e-07 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=5, kpt=5, [0.25 0.25 0.5 ] with 8 symmetries, max error in included blocks: 1.020560098144454e-15 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=6, kpt=6, [0.25 0.75 0.25] with 48 symmetries, max error in included blocks: 3.6293947413027244e-15 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=7, kpt=7, [0.5 0.5 0.5] with 96 symmetries, max error in included blocks: 1.9131948672901813e-14 ; excluded bands are [18 19] out of 20 total bands (accuracy threshold 1e-06)
####################################################################################################
starting WFs
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.536654779058 -0.000000000000 -0.000000000000 | 2.285088127825
0.536654779058 0.000000000000 0.000000000000 | 2.285088127825
0.000000000000 -0.536654779058 -0.000000000000 | 2.285088127825
-0.000000000000 0.536654779058 0.000000000000 | 2.285088127825
0.000000000000 0.000000000000 -0.536654779058 | 2.285088127825
-0.000000000000 -0.000000000000 0.536654779058 | 2.285088127825
0.000000000000 0.000000000000 0.000000000000 | 0.394560626690
0.000000000000 0.000000000000 0.000000000000 | 0.394560626690
0.000000000000 0.000000000000 0.000000000000 | 0.394560626690
----------------------------------------------------------------------------------------------------
0.000000000000 0.000000000000 0.000000000000 | 14.894210647018 <- sum
maximal spread = 2.285088127825
####################################################################################################
####################################################################################################
Iteration 0 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.563601811058 0.000000000000 0.000000000000 | 1.744733624215
0.563601811058 -0.000000000000 -0.000000000000 | 1.744733624215
0.000000000000 -0.563601811058 -0.000000000000 | 1.744733624215
-0.000000000000 0.563601811058 0.000000000000 | 1.744733624215
0.000000000000 0.000000000000 -0.563601811058 | 1.744733624215
-0.000000000000 -0.000000000000 0.563601811058 | 1.744733624215
0.000000000000 0.000000000000 0.000000000000 | 0.378190233812
0.000000000000 0.000000000000 0.000000000000 | 0.378190233812
0.000000000000 0.000000000000 0.000000000000 | 0.378190233812
----------------------------------------------------------------------------------------------------
0.000000000000 0.000000000000 0.000000000000 | 11.602972446724 <- sum
maximal spread = 1.744733624215
standard deviation = 0.0
####################################################################################################
####################################################################################################
Iteration 10 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.630795436182 -0.000000000000 -0.000000000000 | 0.883272793342
0.630795436182 0.000000000000 0.000000000000 | 0.883272793342
0.000000000000 -0.630795436182 -0.000000000000 | 0.883272793342
0.000000000000 0.630795436182 -0.000000000000 | 0.883272793342
0.000000000000 0.000000000000 -0.630795436182 | 0.883272793342
-0.000000000000 -0.000000000000 0.630795436182 | 0.883272793342
0.000000000000 0.000000000000 0.000000000000 | 0.322398749139
0.000000000000 0.000000000000 0.000000000000 | 0.322398749139
0.000000000000 0.000000000000 0.000000000000 | 0.322398749139
----------------------------------------------------------------------------------------------------
0.000000000000 -0.000000000000 -0.000000000000 | 6.266833007473 <- sum
maximal spread = 0.883272793342
standard deviation = 0.01206519751743132
####################################################################################################
####################################################################################################
Iteration 20 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.654090567192 -0.000000000000 -0.000000000000 | 0.792153469762
0.654090567192 0.000000000000 0.000000000000 | 0.792153469762
-0.000000000000 -0.654090567192 0.000000000000 | 0.792153469762
-0.000000000000 0.654090567192 0.000000000000 | 0.792153469762
0.000000000000 0.000000000000 -0.654090567192 | 0.792153469762
-0.000000000000 -0.000000000000 0.654090567192 | 0.792153469762
0.000000000000 0.000000000000 0.000000000000 | 0.299850291881
0.000000000000 0.000000000000 0.000000000000 | 0.299850291881
0.000000000000 0.000000000000 0.000000000000 | 0.299850291881
----------------------------------------------------------------------------------------------------
-0.000000000000 -0.000000000000 -0.000000000000 | 5.652471694214 <- sum
maximal spread = 0.792153469762
standard deviation = 0.0051407714854781765
####################################################################################################
####################################################################################################
Iteration 30 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.660967887785 0.000000000000 0.000000000000 | 0.753514897911
0.660967887785 -0.000000000000 -0.000000000000 | 0.753514897911
-0.000000000000 -0.660967887785 0.000000000000 | 0.753514897911
0.000000000000 0.660967887785 -0.000000000000 | 0.753514897911
-0.000000000000 -0.000000000000 -0.660967887785 | 0.753514897911
0.000000000000 0.000000000000 0.660967887785 | 0.753514897911
0.000000000000 0.000000000000 0.000000000000 | 0.288802604146
0.000000000000 0.000000000000 0.000000000000 | 0.288802604146
0.000000000000 0.000000000000 0.000000000000 | 0.288802604146
----------------------------------------------------------------------------------------------------
0.000000000000 -0.000000000000 -0.000000000000 | 5.387497199905 <- sum
maximal spread = 0.753514897911
standard deviation = 0.002178257510513162
####################################################################################################
####################################################################################################
Iteration 40 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.662205836983 -0.000000000000 -0.000000000000 | 0.736761656150
0.662205836983 0.000000000000 0.000000000000 | 0.736761656150
-0.000000000000 -0.662205836983 0.000000000000 | 0.736761656150
0.000000000000 0.662205836983 -0.000000000000 | 0.736761656150
-0.000000000000 -0.000000000000 -0.662205836983 | 0.736761656150
0.000000000000 0.000000000000 0.662205836983 | 0.736761656150
0.000000000000 0.000000000000 0.000000000000 | 0.282991417678
0.000000000000 0.000000000000 0.000000000000 | 0.282991417678
0.000000000000 0.000000000000 0.000000000000 | 0.282991417678
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.269544189932 <- sum
maximal spread = 0.736761656150
standard deviation = 0.0009702065886269604
####################################################################################################
####################################################################################################
Iteration 50 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.661804909816 -0.000000000000 -0.000000000000 | 0.729010838532
0.661804909816 0.000000000000 0.000000000000 | 0.729010838532
0.000000000000 -0.661804909816 -0.000000000000 | 0.729010838532
-0.000000000000 0.661804909816 0.000000000000 | 0.729010838532
-0.000000000000 -0.000000000000 -0.661804909816 | 0.729010838532
0.000000000000 0.000000000000 0.661804909816 | 0.729010838532
0.000000000000 0.000000000000 0.000000000000 | 0.279781999535
0.000000000000 0.000000000000 0.000000000000 | 0.279781999535
0.000000000000 0.000000000000 0.000000000000 | 0.279781999535
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.213411029800 <- sum
maximal spread = 0.729010838532
standard deviation = 0.0004640486191471078
####################################################################################################
####################################################################################################
Iteration 60 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.661102602581 0.000000000000 0.000000000000 | 0.725158292003
0.661102602581 -0.000000000000 -0.000000000000 | 0.725158292003
0.000000000000 -0.661102602581 -0.000000000000 | 0.725158292003
-0.000000000000 0.661102602581 0.000000000000 | 0.725158292003
0.000000000000 0.000000000000 -0.661102602581 | 0.725158292003
-0.000000000000 -0.000000000000 0.661102602581 | 0.725158292003
0.000000000000 0.000000000000 0.000000000000 | 0.277939924705
0.000000000000 0.000000000000 0.000000000000 | 0.277939924705
0.000000000000 0.000000000000 0.000000000000 | 0.277939924705
----------------------------------------------------------------------------------------------------
-0.000000000000 -0.000000000000 0.000000000000 | 5.184769526133 <- sum
maximal spread = 0.725158292003
standard deviation = 0.00023789287289065087
####################################################################################################
####################################################################################################
Iteration 70 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.660486891637 -0.000000000000 -0.000000000000 | 0.723115973414
0.660486891637 0.000000000000 0.000000000000 | 0.723115973414
-0.000000000000 -0.660486891637 0.000000000000 | 0.723115973414
0.000000000000 0.660486891637 -0.000000000000 | 0.723115973414
0.000000000000 0.000000000000 -0.660486891637 | 0.723115973414
0.000000000000 0.000000000000 0.660486891637 | 0.723115973414
0.000000000000 0.000000000000 0.000000000000 | 0.276850409169
0.000000000000 0.000000000000 0.000000000000 | 0.276850409169
0.000000000000 0.000000000000 0.000000000000 | 0.276850409169
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.169247067995 <- sum
maximal spread = 0.723115973414
standard deviation = 0.00012937199188661473
####################################################################################################
####################################################################################################
Iteration 80 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.660031200090 0.000000000000 0.000000000000 | 0.721975233092
0.660031200090 -0.000000000000 -0.000000000000 | 0.721975233092
0.000000000000 -0.660031200090 -0.000000000000 | 0.721975233092
-0.000000000000 0.660031200090 0.000000000000 | 0.721975233092
-0.000000000000 -0.000000000000 -0.660031200090 | 0.721975233092
0.000000000000 0.000000000000 0.660031200090 | 0.721975233092
0.000000000000 0.000000000000 0.000000000000 | 0.276191652391
0.000000000000 0.000000000000 0.000000000000 | 0.276191652391
0.000000000000 0.000000000000 0.000000000000 | 0.276191652391
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.160426355724 <- sum
maximal spread = 0.721975233092
standard deviation = 7.368638295468722e-05
####################################################################################################
####################################################################################################
Iteration 90 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.659717147808 -0.000000000000 -0.000000000000 | 0.721312424697
0.659717147808 0.000000000000 0.000000000000 | 0.721312424697
-0.000000000000 -0.659717147808 0.000000000000 | 0.721312424697
0.000000000000 0.659717147808 -0.000000000000 | 0.721312424697
0.000000000000 0.000000000000 -0.659717147808 | 0.721312424697
-0.000000000000 -0.000000000000 0.659717147808 | 0.721312424697
0.000000000000 0.000000000000 0.000000000000 | 0.275787187047
0.000000000000 0.000000000000 0.000000000000 | 0.275787187047
0.000000000000 0.000000000000 0.000000000000 | 0.275787187047
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.155236109324 <- sum
maximal spread = 0.721312424697
standard deviation = 4.3423267616859893e-05
####################################################################################################
####################################################################################################
Final state (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.659525508906 -0.000000000000 -0.000000000000 | 0.720947576528
0.659525508906 -0.000000000000 -0.000000000000 | 0.720947576528
0.000000000000 -0.659525508906 -0.000000000000 | 0.720947576528
-0.000000000000 0.659525508906 0.000000000000 | 0.720947576528
0.000000000000 0.000000000000 -0.659525508906 | 0.720947576528
-0.000000000000 -0.000000000000 0.659525508906 | 0.720947576528
0.000000000000 0.000000000000 0.000000000000 | 0.275556374419
0.000000000000 0.000000000000 0.000000000000 | 0.275556374419
0.000000000000 0.000000000000 0.000000000000 | 0.275556374419
----------------------------------------------------------------------------------------------------
-0.000000000000 -0.000000000000 -0.000000000000 | 5.152354582424 <- sum
maximal spread = 0.720947576528
standard deviation = 2.7542718591663477e-05
####################################################################################################
time for creating wannierizer 0.44744396209716797
time for iterations 3.2913784980773926
time for updating 3.059262990951538
total time for wannierization 4.442086219787598
saving to wannier_soc-spin-0.chk :
Symmetrizer_Uirr initialized for ikirr=0, kpt=0, [0. 0. 0.] with 96 symmetries, max error in included blocks: 3.031503561216944e-14 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=1, kpt=1, [0. 0. 0.25] with 8 symmetries, max error in included blocks: 6.77599954797753e-16 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=2, kpt=2, [0. 0. 0.5] with 16 symmetries, max error in included blocks: 4.518280359883027e-16 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=3, kpt=3, [0. 0.25 0.5 ] with 4 symmetries, max error in included blocks: 2.50984693997498e-15 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=4, kpt=4, [0.25 0.25 0.25] with 16 symmetries, max error in included blocks: 8.855195300943755e-07 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=5, kpt=5, [0.25 0.25 0.5 ] with 8 symmetries, max error in included blocks: 4.742874840267547e-16 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=6, kpt=6, [0.25 0.75 0.25] with 48 symmetries, max error in included blocks: 2.65341687215118e-13 ; excluded bands are [] out of 20 total bands (accuracy threshold 1e-06)
Symmetrizer_Uirr initialized for ikirr=7, kpt=7, [0.5 0.5 0.5] with 96 symmetries, max error in included blocks: 4.6593006270397406e-14 ; excluded bands are [18 19] out of 20 total bands (accuracy threshold 1e-06)
####################################################################################################
starting WFs
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.542003634766 -0.000000000000 -0.000000000000 | 2.497945833807
0.542003634766 0.000000000000 0.000000000000 | 2.497945833807
0.000000000000 -0.542003634766 -0.000000000000 | 2.497945833807
-0.000000000000 0.542003634766 0.000000000000 | 2.497945833807
0.000000000000 0.000000000000 -0.542003634766 | 2.497945833807
0.000000000000 0.000000000000 0.542003634766 | 2.497945833807
0.000000000000 0.000000000000 0.000000000000 | 0.468545794870
0.000000000000 0.000000000000 0.000000000000 | 0.468545794870
0.000000000000 0.000000000000 0.000000000000 | 0.468545794870
----------------------------------------------------------------------------------------------------
0.000000000000 0.000000000000 0.000000000000 | 16.393312387453 <- sum
maximal spread = 2.497945833807
####################################################################################################
####################################################################################################
Iteration 0 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.534924517815 0.000000000000 0.000000000000 | 1.966452017198
0.534924517815 -0.000000000000 -0.000000000000 | 1.966452017198
-0.000000000000 -0.534924517815 0.000000000000 | 1.966452017198
-0.000000000000 0.534924517815 0.000000000000 | 1.966452017198
-0.000000000000 -0.000000000000 -0.534924517815 | 1.966452017198
0.000000000000 0.000000000000 0.534924517815 | 1.966452017198
0.000000000000 0.000000000000 0.000000000000 | 0.445648441375
0.000000000000 0.000000000000 0.000000000000 | 0.445648441375
0.000000000000 0.000000000000 0.000000000000 | 0.445648441375
----------------------------------------------------------------------------------------------------
0.000000000000 -0.000000000000 0.000000000000 | 13.135657427313 <- sum
maximal spread = 1.966452017198
standard deviation = 0.0
####################################################################################################
####################################################################################################
Iteration 10 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.652147803883 0.000000000000 0.000000000000 | 0.887542685795
0.652147803883 -0.000000000000 -0.000000000000 | 0.887542685795
0.000000000000 -0.652147803883 -0.000000000000 | 0.887542685795
-0.000000000000 0.652147803883 0.000000000000 | 0.887542685795
0.000000000000 0.000000000000 -0.652147803883 | 0.887542685795
-0.000000000000 -0.000000000000 0.652147803883 | 0.887542685795
0.000000000000 0.000000000000 0.000000000000 | 0.369875604058
0.000000000000 0.000000000000 0.000000000000 | 0.369875604058
0.000000000000 0.000000000000 0.000000000000 | 0.369875604058
----------------------------------------------------------------------------------------------------
0.000000000000 -0.000000000000 0.000000000000 | 6.434882926943 <- sum
maximal spread = 0.887542685795
standard deviation = 0.0133376349117917
####################################################################################################
####################################################################################################
Iteration 20 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.677025258650 -0.000000000000 -0.000000000000 | 0.795176927165
0.677025258650 0.000000000000 0.000000000000 | 0.795176927165
0.000000000000 -0.677025258650 -0.000000000000 | 0.795176927165
-0.000000000000 0.677025258650 0.000000000000 | 0.795176927165
-0.000000000000 -0.000000000000 -0.677025258650 | 0.795176927165
0.000000000000 0.000000000000 0.677025258650 | 0.795176927165
0.000000000000 0.000000000000 0.000000000000 | 0.339102064626
0.000000000000 0.000000000000 0.000000000000 | 0.339102064626
0.000000000000 0.000000000000 0.000000000000 | 0.339102064626
----------------------------------------------------------------------------------------------------
0.000000000000 0.000000000000 0.000000000000 | 5.788367756868 <- sum
maximal spread = 0.795176927165
standard deviation = 0.005029176056763152
####################################################################################################
####################################################################################################
Iteration 30 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.684916551575 0.000000000000 0.000000000000 | 0.758446433164
0.684916551575 -0.000000000000 -0.000000000000 | 0.758446433164
-0.000000000000 -0.684916551575 0.000000000000 | 0.758446433164
0.000000000000 0.684916551575 -0.000000000000 | 0.758446433164
0.000000000000 0.000000000000 -0.684916551575 | 0.758446433164
-0.000000000000 -0.000000000000 0.684916551575 | 0.758446433164
0.000000000000 0.000000000000 0.000000000000 | 0.324682128727
0.000000000000 0.000000000000 0.000000000000 | 0.324682128727
0.000000000000 0.000000000000 0.000000000000 | 0.324682128727
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.524724985167 <- sum
maximal spread = 0.758446433164
standard deviation = 0.0020209542581305843
####################################################################################################
####################################################################################################
Iteration 40 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.686921782534 -0.000000000000 -0.000000000000 | 0.743304163279
0.686921782534 0.000000000000 0.000000000000 | 0.743304163279
-0.000000000000 -0.686921782534 0.000000000000 | 0.743304163279
0.000000000000 0.686921782534 -0.000000000000 | 0.743304163279
0.000000000000 0.000000000000 -0.686921782534 | 0.743304163279
0.000000000000 0.000000000000 0.686921782534 | 0.743304163279
0.000000000000 0.000000000000 0.000000000000 | 0.317248959171
0.000000000000 0.000000000000 0.000000000000 | 0.317248959171
0.000000000000 0.000000000000 0.000000000000 | 0.317248959171
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.411571857186 <- sum
maximal spread = 0.743304163279
standard deviation = 0.0008578719017001534
####################################################################################################
####################################################################################################
Iteration 50 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.687092858156 0.000000000000 0.000000000000 | 0.736611286819
0.687092858156 -0.000000000000 -0.000000000000 | 0.736611286819
-0.000000000000 -0.687092858156 0.000000000000 | 0.736611286819
0.000000000000 0.687092858156 -0.000000000000 | 0.736611286819
0.000000000000 0.000000000000 -0.687092858156 | 0.736611286819
-0.000000000000 -0.000000000000 0.687092858156 | 0.736611286819
0.000000000000 0.000000000000 0.000000000000 | 0.313202607737
0.000000000000 0.000000000000 0.000000000000 | 0.313202607737
0.000000000000 0.000000000000 0.000000000000 | 0.313202607737
----------------------------------------------------------------------------------------------------
-0.000000000000 -0.000000000000 0.000000000000 | 5.359275544128 <- sum
maximal spread = 0.736611286819
standard deviation = 0.000393076490491266
####################################################################################################
####################################################################################################
Iteration 60 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.686804087028 0.000000000000 0.000000000000 | 0.733415175871
0.686804087028 -0.000000000000 -0.000000000000 | 0.733415175871
0.000000000000 -0.686804087028 -0.000000000000 | 0.733415175871
-0.000000000000 0.686804087028 0.000000000000 | 0.733415175871
-0.000000000000 -0.000000000000 -0.686804087028 | 0.733415175871
0.000000000000 0.000000000000 0.686804087028 | 0.733415175871
0.000000000000 0.000000000000 0.000000000000 | 0.310911822261
0.000000000000 0.000000000000 0.000000000000 | 0.310911822261
0.000000000000 0.000000000000 0.000000000000 | 0.310911822261
----------------------------------------------------------------------------------------------------
-0.000000000000 -0.000000000000 -0.000000000000 | 5.333226522008 <- sum
maximal spread = 0.733415175871
standard deviation = 0.00019415278708392512
####################################################################################################
####################################################################################################
Iteration 70 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.686479219060 0.000000000000 0.000000000000 | 0.731777966896
0.686479219060 -0.000000000000 -0.000000000000 | 0.731777966896
0.000000000000 -0.686479219060 -0.000000000000 | 0.731777966896
0.000000000000 0.686479219060 -0.000000000000 | 0.731777966896
0.000000000000 0.000000000000 -0.686479219060 | 0.731777966896
-0.000000000000 -0.000000000000 0.686479219060 | 0.731777966896
0.000000000000 0.000000000000 0.000000000000 | 0.309576357138
0.000000000000 0.000000000000 0.000000000000 | 0.309576357138
0.000000000000 0.000000000000 0.000000000000 | 0.309576357138
----------------------------------------------------------------------------------------------------
0.000000000000 0.000000000000 -0.000000000000 | 5.319396872788 <- sum
maximal spread = 0.731777966896
standard deviation = 0.0001022872245135043
####################################################################################################
####################################################################################################
Iteration 80 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.686223607773 0.000000000000 0.000000000000 | 0.730889899638
0.686223607773 -0.000000000000 -0.000000000000 | 0.730889899638
0.000000000000 -0.686223607773 -0.000000000000 | 0.730889899638
-0.000000000000 0.686223607773 0.000000000000 | 0.730889899638
0.000000000000 0.000000000000 -0.686223607773 | 0.730889899638
-0.000000000000 -0.000000000000 0.686223607773 | 0.730889899638
0.000000000000 0.000000000000 0.000000000000 | 0.308781464286
0.000000000000 0.000000000000 0.000000000000 | 0.308781464286
0.000000000000 0.000000000000 0.000000000000 | 0.308781464286
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.311683790687 <- sum
maximal spread = 0.730889899638
standard deviation = 5.668937488351719e-05
####################################################################################################
####################################################################################################
Iteration 90 (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.686044892132 -0.000000000000 -0.000000000000 | 0.730386933165
0.686044892132 0.000000000000 0.000000000000 | 0.730386933165
-0.000000000000 -0.686044892132 0.000000000000 | 0.730386933165
0.000000000000 0.686044892132 -0.000000000000 | 0.730386933165
-0.000000000000 -0.000000000000 -0.686044892132 | 0.730386933165
0.000000000000 0.000000000000 0.686044892132 | 0.730386933165
0.000000000000 0.000000000000 0.000000000000 | 0.308301633403
0.000000000000 0.000000000000 0.000000000000 | 0.308301633403
0.000000000000 0.000000000000 0.000000000000 | 0.308301633403
----------------------------------------------------------------------------------------------------
0.000000000000 0.000000000000 0.000000000000 | 5.307226499201 <- sum
maximal spread = 0.730386933165
standard deviation = 3.2606194257476315e-05
####################################################################################################
####################################################################################################
Final state (from wannierizer)
----------------------------------------------------------------------------------------------------
wannier centers and spreads
----------------------------------------------------------------------------------------------------
-0.685936185903 -0.000000000000 -0.000000000000 | 0.730116163825
0.685936185903 0.000000000000 0.000000000000 | 0.730116163825
-0.000000000000 -0.685936185903 0.000000000000 | 0.730116163825
0.000000000000 0.685936185903 -0.000000000000 | 0.730116163825
0.000000000000 0.000000000000 -0.685936185903 | 0.730116163825
-0.000000000000 -0.000000000000 0.685936185903 | 0.730116163825
0.000000000000 0.000000000000 0.000000000000 | 0.308032514524
0.000000000000 0.000000000000 0.000000000000 | 0.308032514524
0.000000000000 0.000000000000 0.000000000000 | 0.308032514524
----------------------------------------------------------------------------------------------------
-0.000000000000 0.000000000000 0.000000000000 | 5.304794526524 <- sum
maximal spread = 0.730116163825
standard deviation = 2.039792886713793e-05
####################################################################################################
time for creating wannierizer 0.34493136405944824
time for iterations 3.772080898284912
time for updating 3.5474748611450195
total time for wannierization 4.835838794708252
saving to wannier_soc-spin-1.chk :
Create the System object to be used in WannierBerri calculations
It is called “System_w90” class, although it now does not use the w90 wannierization, but the class is the same.
Unlike the non-SOC systems, here we also specify the direction of the magnetization. We can later easily chanbge this direction without redoing the wannierization.
[10]:
from wannierberri.system.system_soc import SystemSOC
theta = 0
phi = 0
system_soc = SystemSOC.from_wannier90data_soc(w90data=w90data, berry=True, silent=False)
system_soc.set_soc_axis(theta=theta, phi=phi, alpha_soc=1.0)
system_soc.save_npz("system_soc")
setting Rvec
setting AA..
setting AA - OK
Real-space lattice:
[[ 1.435 1.435 1.435]
[-1.435 1.435 1.435]
[-1.435 -1.435 1.435]]
Number of wannier functions: 9
Number of R points: 89
Recommended size of FFT grid [4 4 4]
setting Rvec
setting AA..
setting AA - OK
Real-space lattice:
[[ 1.435 1.435 1.435]
[-1.435 1.435 1.435]
[-1.435 -1.435 1.435]]
Number of wannier functions: 9
Number of R points: 89
Recommended size of FFT grid [4 4 4]
/home/stepan/github/wannier-berri-work/wannier-berri-soc-nscf/wannierberri/utility.py:68: UserWarning: usually need to provide either with real or reciprocal lattice.If you only want to generate a random symmetric tensor - that it fine
warnings.warn("usually need to provide either with real or reciprocal lattice."
/home/stepan/github/wannier-berri-work/wannier-berri-soc-nscf/wannierberri/symmetry/sym_wann_2.py:258: UserWarning: symmetrization of matrices {'dV_soc_wann_0_0'} is not tested. use on your own risk
warnings.warn(f"symmetrization of matrices {unknown} is not tested. use on your own risk")
nspin in SOC: 2
setting the Rvectors with wannier centers (cart):
[[-6.59525509e-01 3.57459156e-17 3.57459156e-17]
[-6.85936186e-01 6.04761835e-17 6.04761835e-17]
[ 6.59525509e-01 1.73597524e-17 1.73597524e-17]
[ 6.85936186e-01 -6.04761835e-17 -6.04761835e-17]
[ 1.73597524e-17 -6.59525509e-01 -1.73597524e-17]
[-8.13853838e-17 -6.85936186e-01 8.13853838e-17]
[-1.73597524e-17 6.59525509e-01 1.73597524e-17]
[ 8.13853838e-17 6.85936186e-01 -8.13853838e-17]
[-3.82689527e-17 -3.82689527e-17 -6.59525509e-01]
[-1.35386848e-17 -1.35386848e-17 -6.85936186e-01]
[ 3.82689527e-17 3.82689527e-17 6.59525509e-01]
[ 1.35386848e-17 1.35386848e-17 6.85936186e-01]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]]
(red):
[[-2.29799829e-01 2.29799829e-01 -3.48545386e-34]
[-2.39002155e-01 2.39002155e-01 -1.23022293e-33]
[ 2.29799829e-01 -2.29799829e-01 -2.38815969e-35]
[ 2.39002155e-01 -2.39002155e-01 1.23022293e-33]
[ 2.38815969e-35 -2.29799829e-01 2.29799829e-01]
[ 1.61314025e-34 -2.39002155e-01 2.39002155e-01]
[-2.38815969e-35 2.29799829e-01 -2.29799829e-01]
[-1.61314025e-34 2.39002155e-01 -2.39002155e-01]
[-2.29799829e-01 4.76405791e-34 -2.29799829e-01]
[-2.39002155e-01 1.31572835e-34 -2.39002155e-01]
[ 2.29799829e-01 -4.76405791e-34 2.29799829e-01]
[ 2.39002155e-01 -1.31572835e-34 2.39002155e-01]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00]]
setting Rvec
using magmoms
[[0. 0. 2.21212609]]
/home/stepan/github/wannier-berri-work/wannier-berri-soc-nscf/wannierberri/symmetry/sym_wann_2.py:258: UserWarning: symmetrization of matrices {'dV_soc_wann_1_1'} is not tested. use on your own risk
warnings.warn(f"symmetrization of matrices {unknown} is not tested. use on your own risk")
/home/stepan/github/wannier-berri-work/wannier-berri-soc-nscf/wannierberri/symmetry/sym_wann_2.py:258: UserWarning: symmetrization of matrices {'overlap_up_down', 'dV_soc_wann_0_1'} is not tested. use on your own risk
warnings.warn(f"symmetrization of matrices {unknown} is not tested. use on your own risk")
using magmoms
[[0. 0. 2.21212609]]
using magmoms
[[0. 0. 2.21212609]]
Saving SystemSOC to system_soc
saving system of class SystemSOC to system_soc
properties: ['num_wann', 'real_lattice', 'iRvec', 'periodic', 'is_phonon', 'wannier_centers_cart', 'pointgroup', 'cell']
saving num_wann to system_soc/num_wann.npz
saving real_lattice to system_soc/real_lattice.npz
saving iRvec to system_soc/iRvec.npz
saving periodic to system_soc/periodic.npz
saving is_phonon to system_soc/is_phonon.npz
saving wannier_centers_cart to system_soc/wannier_centers_cart.npz
saving pointgroup to system_soc/pointgroup.npz
saving cell to system_soc/cell.npz
saving system of class System_w90 to system_soc/system_up
properties: ['num_wann', 'real_lattice', 'iRvec', 'periodic', 'is_phonon', 'wannier_centers_cart', 'pointgroup']
saving num_wann
saving num_wann to system_soc/system_up/num_wann.npz
- Ok!
saving real_lattice
saving real_lattice to system_soc/system_up/real_lattice.npz
- Ok!
saving iRvec
saving iRvec to system_soc/system_up/iRvec.npz
- Ok!
saving periodic
saving periodic to system_soc/system_up/periodic.npz
- Ok!
saving is_phonon
saving is_phonon to system_soc/system_up/is_phonon.npz
- Ok!
saving wannier_centers_cart
saving wannier_centers_cart to system_soc/system_up/wannier_centers_cart.npz
- Ok!
saving pointgroup
saving pointgroup to system_soc/system_up/pointgroup.npz
- Ok!
saving Ham - Ok!
saving AA - Ok!
saving system of class System_w90 to system_soc/system_down
properties: ['num_wann', 'real_lattice', 'iRvec', 'periodic', 'is_phonon', 'wannier_centers_cart', 'pointgroup']
saving num_wann
saving num_wann to system_soc/system_down/num_wann.npz
- Ok!
saving real_lattice
saving real_lattice to system_soc/system_down/real_lattice.npz
- Ok!
saving iRvec
saving iRvec to system_soc/system_down/iRvec.npz
- Ok!
saving periodic
saving periodic to system_soc/system_down/periodic.npz
- Ok!
saving is_phonon
saving is_phonon to system_soc/system_down/is_phonon.npz
- Ok!
saving wannier_centers_cart
saving wannier_centers_cart to system_soc/system_down/wannier_centers_cart.npz
- Ok!
saving pointgroup
saving pointgroup to system_soc/system_down/pointgroup.npz
- Ok!
saving Ham - Ok!
saving AA - Ok!

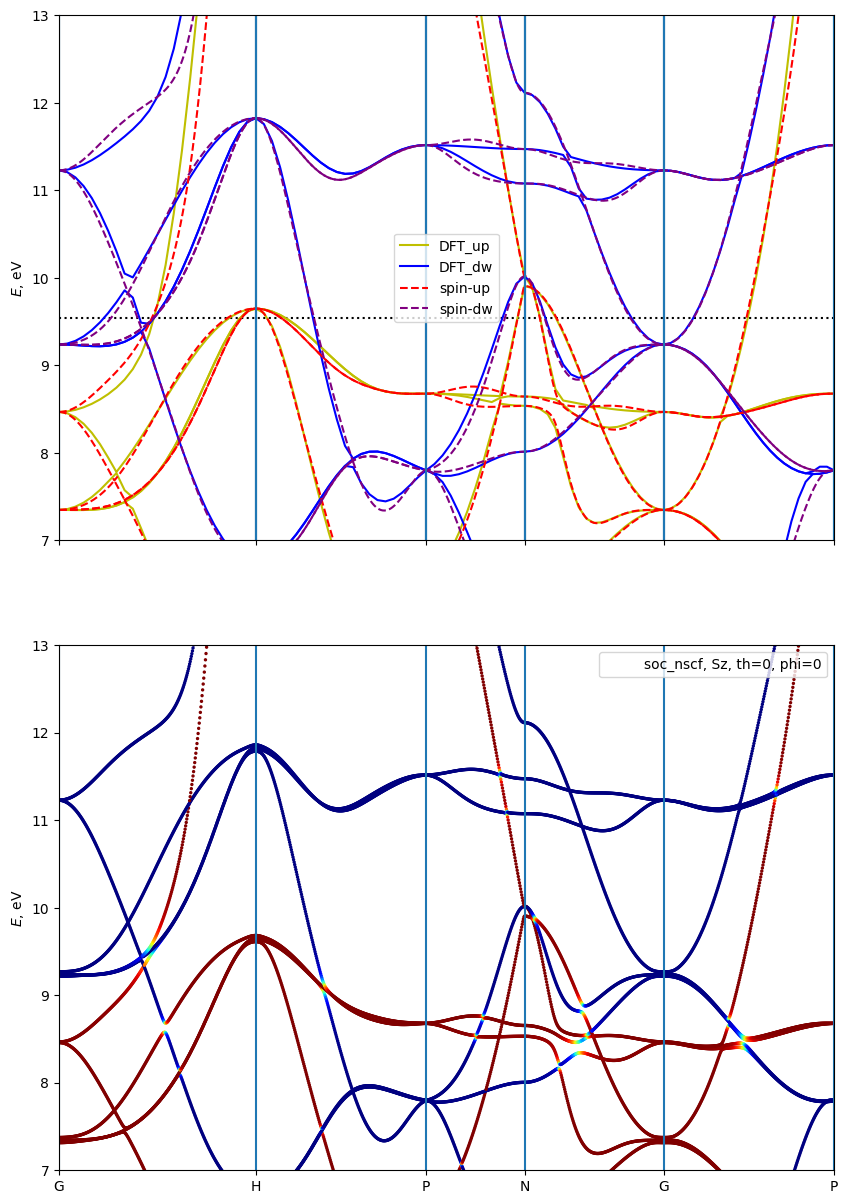

Compute the wannierized bandstructure with SOC along the high-symmetry path
[13]:
from wannierberri.grid import Path
from wannierberri.evaluate_k import evaluate_k_path
# from wannierberri.system.system_soc import SystemSOC
# system_soc = SystemSOC.from_npz("system_soc")
points = {"G": [0.0, 0.0, 0.0],
"H": [0.5, -0.5, -0.5],
"P": [0.75, 0.25, -0.25],
"N": [0.5, 0.0, -0.5],
}
path_str = "GHPNGP"
path = Path(system_soc,
nodes=[points[p] for p in path_str],
labels=[p for p in path_str],
length=1000) # length [ Ang] ~= 2*pi/dk
bands_wannier_soc= evaluate_k_path(system_soc, path=path, quantities=["spin"], parallel=parallel_env)
bands_wannier_up = evaluate_k_path(system_soc.system_up, path=path, parallel=parallel_env)
bands_wannier_dw = evaluate_k_path(system_soc.system_down, path=path, parallel=parallel_env)
Starting run()
Using the follwing calculators :
############################################################
'tabulate' : <wannierberri.calculators.tabulate.TabulatorAll object at 0x76cbf87079b0> :
TabulatorAll - a pack of all k-resolved calculators (Tabulators)
Includes the following tabulators :
--------------------------------------------------
"spin" : <wannierberri.calculators.tabulate.Spin object at 0x76ce635aa600> : Spin expectation :math:` \langle u | \mathbf{\sigma} | u \rangle`
"Energy" : <wannierberri.calculators.tabulate.Energy object at 0x76ce63819250> : calculator not described
--------------------------------------------------
############################################################
Calculation along a path - checking calculators for compatibility
tabulate <wannierberri.calculators.tabulate.TabulatorAll object at 0x76cbf87079b0>
All calculators are compatible
Symmetrization switched off for Path
Grid is regular
The set of k points is a Path() with 1373 points and labels {0: 'G', 348: 'H', 650: 'P', 824: 'N', 1070: 'G', 1372: 'P'}
generating K_list
Done
Done, sum of weights:1373.0
############################################################
Iteration 0 out of 0
processing 1373 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
/home/stepan/github/wannier-berri-work/wannier-berri-soc-nscf/wannierberri/grid/path.py:163: UserWarning: symmetry is not used for a tabulation along path
warnings.warn("symmetry is not used for a tabulation along path")
time for processing 1373 K-points on 16 processes: 0.9452 ; per K-point 0.0007 ; proc-sec per K-point 0.0110
time1 = 0.12922000885009766
Totally processed 1373 K-points
run() finished
Starting run()
Using the follwing calculators :
############################################################
'tabulate' : <wannierberri.calculators.tabulate.TabulatorAll object at 0x76cbf843a330> :
TabulatorAll - a pack of all k-resolved calculators (Tabulators)
Includes the following tabulators :
--------------------------------------------------
"Energy" : <wannierberri.calculators.tabulate.Energy object at 0x76cbf87465d0> : calculator not described
--------------------------------------------------
############################################################
Calculation along a path - checking calculators for compatibility
tabulate <wannierberri.calculators.tabulate.TabulatorAll object at 0x76cbf843a330>
All calculators are compatible
Symmetrization switched off for Path
Grid is regular
The set of k points is a Path() with 1373 points and labels {0: 'G', 348: 'H', 650: 'P', 824: 'N', 1070: 'G', 1372: 'P'}
generating K_list
Done
Done, sum of weights:1373.0
############################################################
Iteration 0 out of 0
processing 1373 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 1373 K-points on 16 processes: 0.6667 ; per K-point 0.0005 ; proc-sec per K-point 0.0078
time1 = 0.08069348335266113
Totally processed 1373 K-points
run() finished
Starting run()
Using the follwing calculators :
############################################################
'tabulate' : <wannierberri.calculators.tabulate.TabulatorAll object at 0x76cbf843a330> :
TabulatorAll - a pack of all k-resolved calculators (Tabulators)
Includes the following tabulators :
--------------------------------------------------
"Energy" : <wannierberri.calculators.tabulate.Energy object at 0x76cc0816a7e0> : calculator not described
--------------------------------------------------
############################################################
Calculation along a path - checking calculators for compatibility
tabulate <wannierberri.calculators.tabulate.TabulatorAll object at 0x76cbf843a330>
All calculators are compatible
Symmetrization switched off for Path
Grid is regular
The set of k points is a Path() with 1373 points and labels {0: 'G', 348: 'H', 650: 'P', 824: 'N', 1070: 'G', 1372: 'P'}
generating K_list
Done
Done, sum of weights:1373.0
############################################################
Iteration 0 out of 0
processing 1373 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 1373 K-points on 16 processes: 0.6226 ; per K-point 0.0005 ; proc-sec per K-point 0.0073
time1 = 0.0809934139251709
Totally processed 1373 K-points
run() finished
Plot the Bandstructure with and without SOC
[ ]:
EF = 9.53754
EF=0
from matplotlib import pyplot as plt
fig, axes = plt.subplots(2, 1, sharey=True, sharex=True, figsize=(10, 15))
theta = 0
phi = 0
bs_dft.plot(show=False, emin=0,emax=30.0, ax=axes[0] , label=["DFT_up", "DFT_dw"])
bands_wannier_soc.plot_path_fat(path=path,
Eshift=EF,
quantity="spin",
component="z",
mode="color",
label=f"soc_nscf, Sz, th={theta}, phi={phi}",
axes=axes[1],
fatmax=2,
linecolor="orange",
close_fig=False,
show_fig=False,
kwargs_line=dict(linestyle='-', lw=0.0),
)
#
bands_wannier_up.plot_path_fat(
path=path,
Eshift=EF,
axes=axes[0],
label="spin-up",
linecolor="red",
kwargs_line=dict(linestyle='--'),
close_fig=False,
show_fig=False)
bands_wannier_dw.plot_path_fat(
path=path,
label="spin-dw",
axes=axes[0],
Eshift=EF,
linecolor="purple",
kwargs_line=dict(linestyle='--'),
close_fig=False,
show_fig=False,)
plt.ylim(7, 13)
plt.show()
/home/stepan/github/WannierBerri-tutorial/.conda/lib/python3.12/site-packages/ase/spectrum/band_structure.py:352: UserWarning: No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
leg = plt.legend(loc=loc)
AHC
magnetization along [001] direction
Below we evaluate separately the “internal” (which depend only on the Hamiltonian) and external (which depend on position matrix elements) contributions to the anomalous Hall conductivity (AHC). The motivation for this separation will be clear shortly
[19]:
import os
import numpy as np
import wannierberri as wb
from wannierberri.system.system_soc import SystemSOC
system_soc_001 = SystemSOC.from_npz("system_soc")
theta=0
phi=0
system_soc_001.set_soc_axis(theta=theta, phi=phi, units="degrees")
grid = wb.grid.Grid(system_soc_001, NK=100)
EF = 9.53754
tetra = False
Efermi = np.linspace(EF - 0.5, EF + 0.5, 1001)
os.makedirs("results", exist_ok=True)
result_int = wb.run(system_soc_001,
grid=grid,
parallel=parallel_env,
fout_name=f"results/Fe-soc-001",
calculators={"ahc_int": wb.calculators.static.AHC(Efermi=Efermi, tetra=tetra, kwargs_formula={"external_terms": False})},
adpt_num_iter=50,
restart=False,
print_progress_step=5,
)
grid = wb.grid.Grid(system_soc, NK=50)
result_ext = wb.run(system_soc,
grid=grid,
parallel=parallel_env,
fout_name=f"results/Fe-soc-001",
calculators={"ahc_ext": wb.calculators.static.AHC(Efermi=Efermi, tetra=tetra, kwargs_formula={"internal_terms": False})},
adpt_num_iter=25,
restart=False,
print_progress_step=5,
)
loading real_lattice - Ok!
loading wannier_centers_cart - Ok!
loading pointgroup - Ok!
loading iRvec - Ok!
loading periodic - Ok!
loading is_phonon - Ok!
loading num_wann - Ok!
loading R_matrix Ham - Ok!
loading R_matrix AA - Ok!
loading real_lattice - Ok!
loading wannier_centers_cart - Ok!
loading pointgroup - Ok!
loading iRvec - Ok!
loading periodic - Ok!
loading is_phonon - Ok!
loading num_wann - Ok!
loading R_matrix Ham - Ok!
loading R_matrix AA - Ok!
using magmoms
[[0. 0. 2.21212609]]
Minimal symmetric FFT grid : [7 7 7]
Starting run()
Using the follwing calculators :
############################################################
'ahc_int' : <wannierberri.calculators.static.AHC object at 0x76cbf3eab890> : Anomalous Hall conductivity (:math:`s^3 \cdot A^2 / (kg \cdot m^3) = S/m`)
| With Fermi sea integral Eq(11) in `Ref <https://www.nature.com/articles/s41524-021-00498-5>`__
| Output: :math:`O = -e^2/\hbar \int [dk] \Omega f`
| Instruction: :math:`j_\alpha = \sigma_{\alpha\beta} E_\beta = \epsilon_{\alpha\beta\delta} O_\delta E_\beta`
############################################################
Calculation on grid - checking calculators for compatibility
ahc_int <wannierberri.calculators.static.AHC object at 0x76cbf3eab890>
All calculators are compatible
Grid is regular
The set of k points is a Grid() with NKdiv=[10 10 10], NKFFT=[10 10 10], NKtot=[100 100 100]
generating K_list
Done in 0.0022110939025878906 s
excluding symmetry-equivalent K-points from initial grid
Done in 0.0185086727142334 s
K_list contains 102 Irreducible points(10.2%) out of initial 10x10x10=1000 grid
Done, sum of weights:1.0000000000000007
############################################################

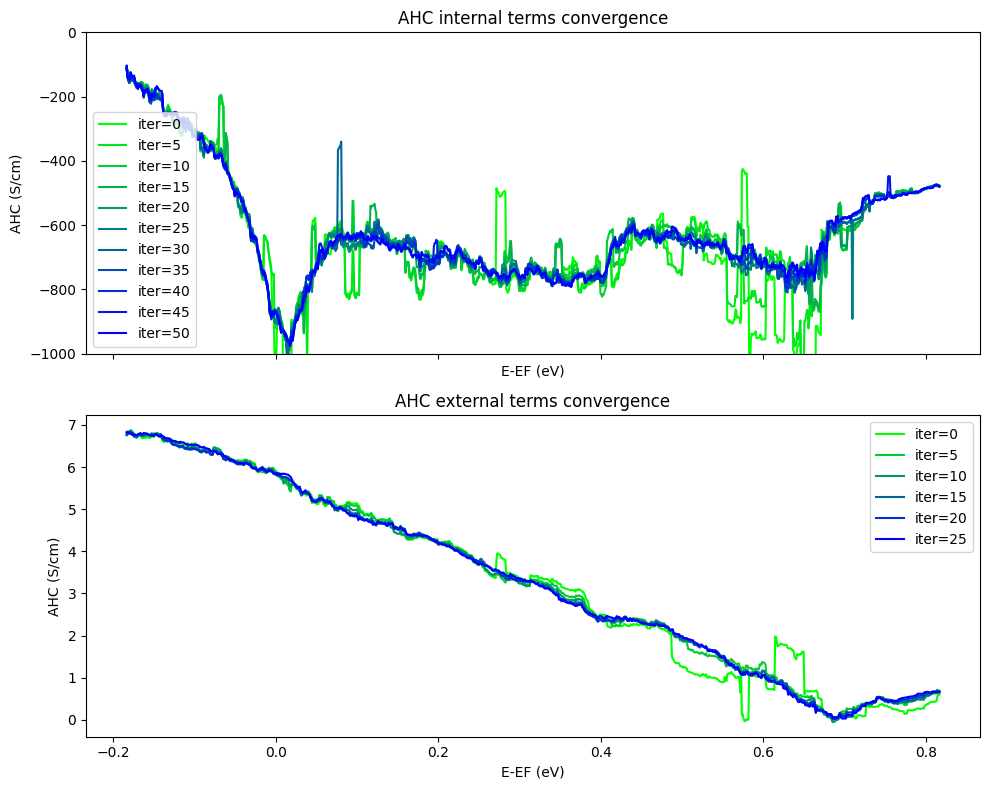

Iteration 0 out of 50
processing 102 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 102 K-points on 16 processes: 4.6274 ; per K-point 0.0454 ; proc-sec per K-point 0.7259
time1 = 0.001878976821899414
time2 = 0.007702827453613281
sum of weights now :1.0000000000000007
############################################################
Iteration 1 out of 50
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.9005 ; per K-point 0.0693 ; proc-sec per K-point 1.1083
time1 = 0.0007953643798828125
time2 = 0.008181333541870117
sum of weights now :1.0000000000000007
############################################################
Iteration 2 out of 50
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.7701 ; per K-point 0.0642 ; proc-sec per K-point 1.0268
time1 = 0.0004124641418457031
time2 = 0.0074310302734375
sum of weights now :1.0000000000000007
############################################################
Iteration 3 out of 50
processing 7 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 7 K-points on 16 processes: 0.5838 ; per K-point 0.0834 ; proc-sec per K-point 1.3345
time1 = 0.0005726814270019531
time2 = 0.011391878128051758
sum of weights now :1.0000000000000009
############################################################
Iteration 4 out of 50
processing 7 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 7 K-points on 16 processes: 0.5215 ; per K-point 0.0745 ; proc-sec per K-point 1.1921
time1 = 0.0002257823944091797
time2 = 0.005857706069946289
sum of weights now :1.0000000000000009
############################################################
Iteration 5 out of 50
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.7288 ; per K-point 0.0607 ; proc-sec per K-point 0.9718
time1 = 0.0003638267517089844
time2 = 0.006953716278076172
sum of weights now :1.0000000000000004
############################################################
Iteration 6 out of 50
processing 20 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 20 K-points on 16 processes: 1.0621 ; per K-point 0.0531 ; proc-sec per K-point 0.8497
time1 = 0.0004956722259521484
time2 = 0.0066835880279541016
sum of weights now :1.0000000000000004
############################################################
Iteration 7 out of 50
processing 7 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 7 K-points on 16 processes: 0.5372 ; per K-point 0.0767 ; proc-sec per K-point 1.2279
time1 = 0.00024127960205078125
time2 = 0.0066149234771728516
sum of weights now :1.0000000000000004
############################################################
Iteration 8 out of 50
processing 6 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 6 K-points on 16 processes: 0.4656 ; per K-point 0.0776 ; proc-sec per K-point 1.2416
time1 = 0.0002644062042236328
time2 = 0.007863044738769531
sum of weights now :1.0000000000000007
############################################################
Iteration 9 out of 50
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.7483 ; per K-point 0.0624 ; proc-sec per K-point 0.9977
time1 = 0.00030684471130371094
time2 = 0.005937814712524414
sum of weights now :1.0000000000000004
############################################################
Iteration 10 out of 50
processing 7 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 7 K-points on 16 processes: 0.5309 ; per K-point 0.0758 ; proc-sec per K-point 1.2135
time1 = 0.00020194053649902344
time2 = 0.005774259567260742
sum of weights now :1.0000000000000004
############################################################
Iteration 11 out of 50
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.7702 ; per K-point 0.0642 ; proc-sec per K-point 1.0269
time1 = 0.00039696693420410156
time2 = 0.008262872695922852
sum of weights now :1.0000000000000004
############################################################
Iteration 12 out of 50
processing 9 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 9 K-points on 16 processes: 0.6741 ; per K-point 0.0749 ; proc-sec per K-point 1.1984
time1 = 0.0002918243408203125
time2 = 0.006740093231201172
sum of weights now :1.0000000000000004
############################################################
Iteration 13 out of 50
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.7890 ; per K-point 0.0658 ; proc-sec per K-point 1.0521
time1 = 0.000392913818359375
time2 = 0.007868051528930664
sum of weights now :1.0000000000000007
############################################################
Iteration 14 out of 50
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.8062 ; per K-point 0.0620 ; proc-sec per K-point 0.9922
time1 = 0.00033974647521972656
time2 = 0.006372690200805664
sum of weights now :1.0000000000000009
############################################################
Iteration 15 out of 50
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.7701 ; per K-point 0.0642 ; proc-sec per K-point 1.0268
time1 = 0.0004107952117919922
time2 = 0.007712602615356445
sum of weights now :1.0000000000000013
############################################################
Iteration 16 out of 50
processing 20 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 20 K-points on 16 processes: 1.1512 ; per K-point 0.0576 ; proc-sec per K-point 0.9210
time1 = 0.0007264614105224609
time2 = 0.010617971420288086
sum of weights now :1.000000000000001
############################################################
Iteration 17 out of 50
processing 19 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 19 K-points on 16 processes: 1.0135 ; per K-point 0.0533 ; proc-sec per K-point 0.8535
time1 = 0.0005431175231933594
time2 = 0.00824284553527832
sum of weights now :1.0000000000000013
############################################################
Iteration 18 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.1177 ; per K-point 0.0508 ; proc-sec per K-point 0.8128
time1 = 0.0006074905395507812
time2 = 0.006329536437988281
sum of weights now :1.0000000000000013
############################################################
Iteration 19 out of 50
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.8770 ; per K-point 0.0626 ; proc-sec per K-point 1.0023
time1 = 0.0003681182861328125
time2 = 0.006533622741699219
sum of weights now :1.0000000000000013
############################################################
Iteration 20 out of 50
processing 23 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 23 K-points on 16 processes: 1.2501 ; per K-point 0.0544 ; proc-sec per K-point 0.8697
time1 = 0.0005617141723632812
time2 = 0.007447719573974609
sum of weights now :1.0000000000000016
############################################################
Iteration 21 out of 50
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.8193 ; per K-point 0.0585 ; proc-sec per K-point 0.9363
time1 = 0.00036978721618652344
time2 = 0.008879423141479492
sum of weights now :1.0000000000000016
############################################################
Iteration 22 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9406 ; per K-point 0.0588 ; proc-sec per K-point 0.9406
time1 = 0.000492095947265625
time2 = 0.008811235427856445
sum of weights now :1.0000000000000013
############################################################
Iteration 23 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.0987 ; per K-point 0.0523 ; proc-sec per K-point 0.8371
time1 = 0.0004394054412841797
time2 = 0.0059359073638916016
sum of weights now :1.0000000000000016
############################################################
Iteration 24 out of 50
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.8558 ; per K-point 0.0571 ; proc-sec per K-point 0.9128
time1 = 0.0003352165222167969
time2 = 0.008708000183105469
sum of weights now :1.0000000000000013
############################################################
Iteration 25 out of 50
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.9136 ; per K-point 0.0609 ; proc-sec per K-point 0.9745
time1 = 0.0003402233123779297
time2 = 0.006499290466308594
sum of weights now :1.000000000000001
############################################################
Iteration 26 out of 50
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.8638 ; per K-point 0.0576 ; proc-sec per K-point 0.9213
time1 = 0.0008499622344970703
time2 = 0.00757145881652832
sum of weights now :1.000000000000001
############################################################
Iteration 27 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.8766 ; per K-point 0.0548 ; proc-sec per K-point 0.8766
time1 = 0.0005102157592773438
time2 = 0.007470607757568359
sum of weights now :1.000000000000001
############################################################
Iteration 28 out of 50
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.7820 ; per K-point 0.0602 ; proc-sec per K-point 0.9624
time1 = 0.0005137920379638672
time2 = 0.008615970611572266
sum of weights now :1.0000000000000009
############################################################
Iteration 29 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.0882 ; per K-point 0.0518 ; proc-sec per K-point 0.8291
time1 = 0.0010712146759033203
time2 = 0.01464080810546875
sum of weights now :1.0000000000000009
############################################################
Iteration 30 out of 50
processing 19 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 19 K-points on 16 processes: 1.0647 ; per K-point 0.0560 ; proc-sec per K-point 0.8966
time1 = 0.00038242340087890625
time2 = 0.006251811981201172
sum of weights now :1.000000000000001
############################################################
Iteration 31 out of 50
processing 6 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 6 K-points on 16 processes: 0.4383 ; per K-point 0.0731 ; proc-sec per K-point 1.1689
time1 = 0.00019121170043945312
time2 = 0.007339954376220703
sum of weights now :1.0000000000000009
############################################################
Iteration 32 out of 50
processing 23 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 23 K-points on 16 processes: 1.2365 ; per K-point 0.0538 ; proc-sec per K-point 0.8602
time1 = 0.00046515464782714844
time2 = 0.005999326705932617
sum of weights now :1.0000000000000009
############################################################
Iteration 33 out of 50
processing 11 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 11 K-points on 16 processes: 0.7468 ; per K-point 0.0679 ; proc-sec per K-point 1.0863
time1 = 0.0003590583801269531
time2 = 0.00866079330444336
sum of weights now :1.000000000000001
############################################################
Iteration 34 out of 50
processing 6 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 6 K-points on 16 processes: 0.5260 ; per K-point 0.0877 ; proc-sec per K-point 1.4026
time1 = 0.00022792816162109375
time2 = 0.00874948501586914
sum of weights now :1.0000000000000009
############################################################
Iteration 35 out of 50
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.8989 ; per K-point 0.0599 ; proc-sec per K-point 0.9588
time1 = 0.0004596710205078125
time2 = 0.007776498794555664
sum of weights now :1.0000000000000009
############################################################
Iteration 36 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.0865 ; per K-point 0.0517 ; proc-sec per K-point 0.8278
time1 = 0.001737356185913086
time2 = 0.0180814266204834
sum of weights now :1.0000000000000007
############################################################
Iteration 37 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9203 ; per K-point 0.0575 ; proc-sec per K-point 0.9203
time1 = 0.00037741661071777344
time2 = 0.006784677505493164
sum of weights now :1.0000000000000004
############################################################
Iteration 38 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.1891 ; per K-point 0.0566 ; proc-sec per K-point 0.9060
time1 = 0.00048279762268066406
time2 = 0.00739741325378418
sum of weights now :1.0000000000000002
############################################################
Iteration 39 out of 50
processing 20 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 20 K-points on 16 processes: 1.2506 ; per K-point 0.0625 ; proc-sec per K-point 1.0004
time1 = 0.0004999637603759766
time2 = 0.008546113967895508
sum of weights now :1.0000000000000004
############################################################
Iteration 40 out of 50
processing 7 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 7 K-points on 16 processes: 0.5171 ; per K-point 0.0739 ; proc-sec per K-point 1.1820
time1 = 0.00024247169494628906
time2 = 0.007050037384033203
sum of weights now :1.0000000000000002
############################################################
Iteration 41 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.0748 ; per K-point 0.0512 ; proc-sec per K-point 0.8189
time1 = 0.0007936954498291016
time2 = 0.007865428924560547
sum of weights now :1.0
############################################################
Iteration 42 out of 50
processing 17 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 17 K-points on 16 processes: 1.0058 ; per K-point 0.0592 ; proc-sec per K-point 0.9467
time1 = 0.0006487369537353516
time2 = 0.007550954818725586
sum of weights now :1.0000000000000002
############################################################
Iteration 43 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.0855 ; per K-point 0.0517 ; proc-sec per K-point 0.8271
time1 = 0.0005221366882324219
time2 = 0.0071163177490234375
sum of weights now :0.9999999999999993
############################################################
Iteration 44 out of 50
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.9098 ; per K-point 0.0607 ; proc-sec per K-point 0.9704
time1 = 0.000308990478515625
time2 = 0.00583648681640625
sum of weights now :0.9999999999999991
############################################################
Iteration 45 out of 50
processing 18 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 18 K-points on 16 processes: 1.0941 ; per K-point 0.0608 ; proc-sec per K-point 0.9725
time1 = 0.0005409717559814453
time2 = 0.008434057235717773
sum of weights now :0.9999999999999989
############################################################
Iteration 46 out of 50
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.8404 ; per K-point 0.0600 ; proc-sec per K-point 0.9604
time1 = 0.0004355907440185547
time2 = 0.00698089599609375
sum of weights now :0.9999999999999991
############################################################
Iteration 47 out of 50
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.8342 ; per K-point 0.0642 ; proc-sec per K-point 1.0266
time1 = 0.00033092498779296875
time2 = 0.0069196224212646484
sum of weights now :0.9999999999999989
############################################################
Iteration 48 out of 50
processing 7 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 7 K-points on 16 processes: 0.5590 ; per K-point 0.0799 ; proc-sec per K-point 1.2777
time1 = 0.00024819374084472656
time2 = 0.00750422477722168
sum of weights now :0.9999999999999988
############################################################
Iteration 49 out of 50
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.8835 ; per K-point 0.0631 ; proc-sec per K-point 1.0098
time1 = 0.0004811286926269531
time2 = 0.008814334869384766
sum of weights now :0.9999999999999981
############################################################
Iteration 50 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.1349 ; per K-point 0.0516 ; proc-sec per K-point 0.8254
time1 = 0.0004978179931640625
Totally processed 834 K-points
run() finished
Minimal symmetric FFT grid : [4 4 4]
Starting run()
Using the follwing calculators :
############################################################
'ahc_ext' : <wannierberri.calculators.static.AHC object at 0x76cc082370e0> : Anomalous Hall conductivity (:math:`s^3 \cdot A^2 / (kg \cdot m^3) = S/m`)
| With Fermi sea integral Eq(11) in `Ref <https://www.nature.com/articles/s41524-021-00498-5>`__
| Output: :math:`O = -e^2/\hbar \int [dk] \Omega f`
| Instruction: :math:`j_\alpha = \sigma_{\alpha\beta} E_\beta = \epsilon_{\alpha\beta\delta} O_\delta E_\beta`
############################################################
Calculation on grid - checking calculators for compatibility
ahc_ext <wannierberri.calculators.static.AHC object at 0x76cc082370e0>
All calculators are compatible
Grid is regular
The set of k points is a Grid() with NKdiv=[10 10 10], NKFFT=[5 5 5], NKtot=[50 50 50]
generating K_list
Done in 0.00618433952331543 s
excluding symmetry-equivalent K-points from initial grid
Done in 0.02452993392944336 s
K_list contains 102 Irreducible points(10.2%) out of initial 10x10x10=1000 grid
Done, sum of weights:1.0000000000000007
############################################################
Iteration 0 out of 25
processing 102 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 102 K-points on 16 processes: 1.0227 ; per K-point 0.0100 ; proc-sec per K-point 0.1604
time1 = 0.0019321441650390625
time2 = 0.006858110427856445
sum of weights now :1.0000000000000007
############################################################
Iteration 1 out of 25
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.1891 ; per K-point 0.0158 ; proc-sec per K-point 0.2521
time1 = 0.0003228187561035156
time2 = 0.011844396591186523
sum of weights now :1.0000000000000007
############################################################
Iteration 2 out of 25
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.1792 ; per K-point 0.0138 ; proc-sec per K-point 0.2205
time1 = 0.0003447532653808594
time2 = 0.007437944412231445
sum of weights now :1.0000000000000007
############################################################
Iteration 3 out of 25
processing 7 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 7 K-points on 16 processes: 0.1416 ; per K-point 0.0202 ; proc-sec per K-point 0.3237
time1 = 0.0003037452697753906
time2 = 0.007941246032714844
sum of weights now :1.0000000000000009
############################################################
Iteration 4 out of 25
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 0.2310 ; per K-point 0.0110 ; proc-sec per K-point 0.1760
time1 = 0.0013484954833984375
time2 = 0.009971141815185547
sum of weights now :1.0000000000000007
############################################################
Iteration 5 out of 25
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.2058 ; per K-point 0.0129 ; proc-sec per K-point 0.2058
time1 = 0.0006289482116699219
time2 = 0.008198738098144531
sum of weights now :1.0000000000000004
############################################################
Iteration 6 out of 25
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.1842 ; per K-point 0.0142 ; proc-sec per K-point 0.2268
time1 = 0.00044798851013183594
time2 = 0.009694099426269531
sum of weights now :1.0000000000000004
############################################################
Iteration 7 out of 25
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.1829 ; per K-point 0.0122 ; proc-sec per K-point 0.1951
time1 = 0.0004856586456298828
time2 = 0.00830388069152832
sum of weights now :1.0000000000000007
############################################################
Iteration 8 out of 25
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 0.2156 ; per K-point 0.0103 ; proc-sec per K-point 0.1643
time1 = 0.0005338191986083984
time2 = 0.007507801055908203
sum of weights now :1.0000000000000009
############################################################
Iteration 9 out of 25
processing 23 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 23 K-points on 16 processes: 0.2758 ; per K-point 0.0120 ; proc-sec per K-point 0.1919
time1 = 0.0005025863647460938
time2 = 0.006864070892333984
sum of weights now :1.0000000000000009
############################################################
Iteration 10 out of 25
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.2194 ; per K-point 0.0146 ; proc-sec per K-point 0.2340
time1 = 0.0003006458282470703
time2 = 0.0053441524505615234
sum of weights now :1.000000000000001
############################################################
Iteration 11 out of 25
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 0.2396 ; per K-point 0.0109 ; proc-sec per K-point 0.1743
time1 = 0.0007827281951904297
time2 = 0.0082550048828125
sum of weights now :1.000000000000001
############################################################
Iteration 12 out of 25
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 0.2762 ; per K-point 0.0132 ; proc-sec per K-point 0.2104
time1 = 0.0008561611175537109
time2 = 0.009559392929077148
sum of weights now :1.000000000000001
############################################################
Iteration 13 out of 25
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 0.2360 ; per K-point 0.0107 ; proc-sec per K-point 0.1716
time1 = 0.0006020069122314453
time2 = 0.005931854248046875
sum of weights now :1.000000000000001
############################################################
Iteration 14 out of 25
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.1936 ; per K-point 0.0149 ; proc-sec per K-point 0.2382
time1 = 0.0004413127899169922
time2 = 0.007688760757446289
sum of weights now :1.000000000000001
############################################################
Iteration 15 out of 25
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.1857 ; per K-point 0.0124 ; proc-sec per K-point 0.1981
time1 = 0.0005307197570800781
time2 = 0.007665395736694336
sum of weights now :1.0000000000000013
############################################################
Iteration 16 out of 25
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.2009 ; per K-point 0.0134 ; proc-sec per K-point 0.2142
time1 = 0.0005877017974853516
time2 = 0.008923053741455078
sum of weights now :1.000000000000001
############################################################
Iteration 17 out of 25
processing 24 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 24 K-points on 16 processes: 0.2818 ; per K-point 0.0117 ; proc-sec per K-point 0.1878
time1 = 0.0004417896270751953
time2 = 0.00702667236328125
sum of weights now :1.000000000000001
############################################################
Iteration 18 out of 25
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 0.2125 ; per K-point 0.0101 ; proc-sec per K-point 0.1619
time1 = 0.0007064342498779297
time2 = 0.009695768356323242
sum of weights now :1.000000000000001
############################################################
Iteration 19 out of 25
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.1727 ; per K-point 0.0123 ; proc-sec per K-point 0.1973
time1 = 0.0005691051483154297
time2 = 0.010138750076293945
sum of weights now :1.000000000000001
############################################################
Iteration 20 out of 25
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 0.2320 ; per K-point 0.0110 ; proc-sec per K-point 0.1768
time1 = 0.0004973411560058594
time2 = 0.007140159606933594
sum of weights now :1.000000000000001
############################################################
Iteration 21 out of 25
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 0.2306 ; per K-point 0.0110 ; proc-sec per K-point 0.1757
time1 = 0.0005290508270263672
time2 = 0.007555246353149414
sum of weights now :1.000000000000001
############################################################
Iteration 22 out of 25
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.1774 ; per K-point 0.0118 ; proc-sec per K-point 0.1893
time1 = 0.0004494190216064453
time2 = 0.007658481597900391
sum of weights now :1.0000000000000009
############################################################
Iteration 23 out of 25
processing 23 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 23 K-points on 16 processes: 0.2908 ; per K-point 0.0126 ; proc-sec per K-point 0.2023
time1 = 0.0007078647613525391
time2 = 0.006676673889160156
sum of weights now :1.000000000000001
############################################################
Iteration 24 out of 25
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.2004 ; per K-point 0.0143 ; proc-sec per K-point 0.2290
time1 = 0.00048065185546875
time2 = 0.007725715637207031
sum of weights now :1.000000000000001
############################################################
Iteration 25 out of 25
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.2054 ; per K-point 0.0147 ; proc-sec per K-point 0.2347
time1 = 0.00048089027404785156
Totally processed 533 K-points
run() finished
plot AHC vs energy
[22]:
from matplotlib import pyplot as plt
import numpy as np
theta=0
phi=0
EF=9.22085
fig, axes = plt.subplots(2, 1, sharey=False, sharex=True, figsize=(10, 8))
for i in range(0,51,5):
color = (0, 1-i/50, i/50)
res = np.load(f"results/Fe-soc-001-ahc_int_iter-{i:04d}.npz")
Efermi = res['Energies_0']
ahc = res["data"]
axes[0].plot(Efermi - EF, ahc[:,2]/100, label=f"iter={i}", color=color)
axes[0].set_title("AHC internal terms convergence")
axes[0].set_ylim(-1000, 0)
axes[0].set_xlabel("E-EF (eV)")
axes[0].set_ylabel("AHC (S/cm)")
axes[0].legend()
for i in range(0,26,5):
color = (0, 1-i/25, i/25)
res = np.load(f"results/Fe-soc-001-ahc_ext_iter-{i:04d}.npz")
Efermi = res['Energies_0']
ahc = res["data"]
axes[1].plot(Efermi - EF, ahc[:,2]/100, label=f"iter={i}", color=color)
axes[1].set_title("AHC external terms convergence")
axes[1].set_xlabel("E-EF (eV)")
axes[1].set_ylabel("AHC (S/cm)")
axes[1].legend()
plt.tight_layout()
plt.savefig("ahc_convergence.png", dpi=300)
We can observe 3 things, which are generally true, not only for AHC, but for most other effects:
The internal terms converge slower than the external ones.
The external terms usually give a smaller contribution. Often (but not always) it is negligible. However, check it for a particular material and effect.
The external terms take more time to evaluate per k-point.
Thus, it makes sense to evaluate them separately, using different k-point grids and number of iterations for the adaptive integration.

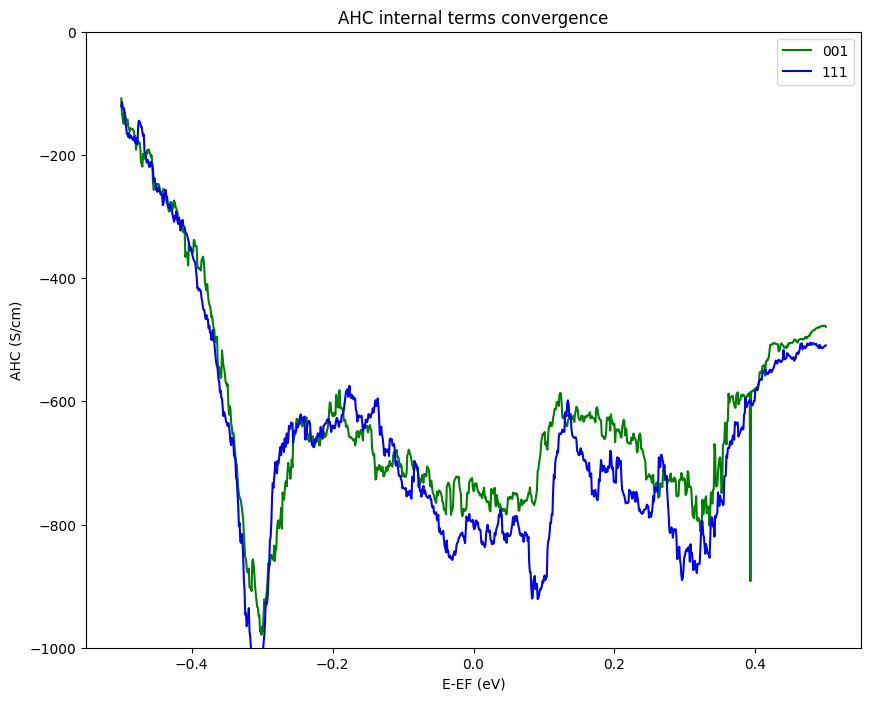

compare directions of magnetization
Now let us align the magnetization along [111] direction and compute the AHC again. (this time internal terms only)
[24]:
import os
import numpy as np
import wannierberri as wb
from wannierberri.system.system_soc import SystemSOC
system_soc_111 = SystemSOC.from_npz("system_soc")
theta=np.arccos(1/np.sqrt(3))
phi=np.pi/4
system_soc_111.set_soc_axis(theta=theta, phi=phi, units="radians")
grid = wb.grid.Grid(system_soc_111, NK=100)
EF = 9.53754
tetra = False
Efermi = np.linspace(EF - 0.5, EF + 0.5, 1001)
os.makedirs("results", exist_ok=True)
result_int = wb.run(system_soc_111,
grid=grid,
parallel=parallel_env,
fout_name=f"results/Fe-soc-111",
calculators={"ahc_int": wb.calculators.static.AHC(Efermi=Efermi, tetra=tetra, kwargs_formula={"external_terms": False})},
adpt_num_iter=50,
restart=False,
print_progress_step=5,
)
loading real_lattice - Ok!
loading wannier_centers_cart - Ok!
loading pointgroup - Ok!
loading iRvec - Ok!
loading periodic - Ok!
loading is_phonon - Ok!
loading num_wann - Ok!
loading R_matrix Ham - Ok!
loading R_matrix AA - Ok!
loading real_lattice - Ok!
loading wannier_centers_cart - Ok!
loading pointgroup - Ok!
loading iRvec - Ok!
loading periodic - Ok!
loading is_phonon - Ok!
loading num_wann - Ok!
loading R_matrix Ham - Ok!
loading R_matrix AA - Ok!
using magmoms
[[1.27717159 1.27717159 1.27717159]]
Minimal symmetric FFT grid : [7 7 7]
/home/stepan/github/wannier-berri-work/wannier-berri-soc-nscf/wannierberri/utility.py:68: UserWarning: usually need to provide either with real or reciprocal lattice.If you only want to generate a random symmetric tensor - that it fine
warnings.warn("usually need to provide either with real or reciprocal lattice."
Starting run()
Using the follwing calculators :
############################################################
'ahc_int' : <wannierberri.calculators.static.AHC object at 0x76cbf28e7c80> : Anomalous Hall conductivity (:math:`s^3 \cdot A^2 / (kg \cdot m^3) = S/m`)
| With Fermi sea integral Eq(11) in `Ref <https://www.nature.com/articles/s41524-021-00498-5>`__
| Output: :math:`O = -e^2/\hbar \int [dk] \Omega f`
| Instruction: :math:`j_\alpha = \sigma_{\alpha\beta} E_\beta = \epsilon_{\alpha\beta\delta} O_\delta E_\beta`
############################################################
Calculation on grid - checking calculators for compatibility
ahc_int <wannierberri.calculators.static.AHC object at 0x76cbf28e7c80>
All calculators are compatible
Grid is regular
The set of k points is a Grid() with NKdiv=[10 10 10], NKFFT=[10 10 10], NKtot=[100 100 100]
generating K_list
Done in 0.0029926300048828125 s
excluding symmetry-equivalent K-points from initial grid
Done in 0.026805639266967773 s
K_list contains 116 Irreducible points(11.6%) out of initial 10x10x10=1000 grid
Done, sum of weights:1.0000000000000007
############################################################
Iteration 0 out of 50
processing 116 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
112 5.3 0.2 5.5
time for processing 116 K-points on 16 processes: 5.3918 ; per K-point 0.0465 ; proc-sec per K-point 0.7437
time1 = 0.001786947250366211
time2 = 0.0064432621002197266
sum of weights now :1.0000000000000009
############################################################
Iteration 1 out of 50
processing 4 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 4 K-points on 16 processes: 0.4038 ; per K-point 0.1009 ; proc-sec per K-point 1.6150
time1 = 0.0002446174621582031
time2 = 0.006775379180908203
sum of weights now :1.0000000000000007
############################################################
Iteration 2 out of 50
processing 6 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 6 K-points on 16 processes: 0.4802 ; per K-point 0.0800 ; proc-sec per K-point 1.2805
time1 = 0.0002262592315673828
time2 = 0.008021831512451172
sum of weights now :1.0000000000000004
############################################################
Iteration 3 out of 50
processing 8 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 8 K-points on 16 processes: 0.5773 ; per K-point 0.0722 ; proc-sec per K-point 1.1545
time1 = 0.0003972053527832031
time2 = 0.007220268249511719
sum of weights now :1.0000000000000002
############################################################
Iteration 4 out of 50
processing 12 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 12 K-points on 16 processes: 0.8307 ; per K-point 0.0692 ; proc-sec per K-point 1.1076
time1 = 0.0004572868347167969
time2 = 0.01074075698852539
sum of weights now :1.0000000000000002
############################################################
Iteration 5 out of 50
processing 10 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 10 K-points on 16 processes: 0.7450 ; per K-point 0.0745 ; proc-sec per K-point 1.1921
time1 = 0.0003848075866699219
time2 = 0.0075550079345703125
sum of weights now :0.9999999999999997
############################################################
Iteration 6 out of 50
processing 8 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 8 K-points on 16 processes: 0.5881 ; per K-point 0.0735 ; proc-sec per K-point 1.1761
time1 = 0.0002598762512207031
time2 = 0.006685018539428711
sum of weights now :0.9999999999999993
############################################################
Iteration 7 out of 50
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.8987 ; per K-point 0.0599 ; proc-sec per K-point 0.9587
time1 = 0.0003325939178466797
time2 = 0.006419181823730469
sum of weights now :0.9999999999999989
############################################################
Iteration 8 out of 50
processing 8 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 8 K-points on 16 processes: 0.5898 ; per K-point 0.0737 ; proc-sec per K-point 1.1795
time1 = 0.00018978118896484375
time2 = 0.009046316146850586
sum of weights now :0.9999999999999984
############################################################
Iteration 9 out of 50
processing 8 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 8 K-points on 16 processes: 0.7224 ; per K-point 0.0903 ; proc-sec per K-point 1.4449
time1 = 0.0005583763122558594
time2 = 0.008491039276123047
sum of weights now :0.9999999999999981
############################################################
Iteration 10 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9625 ; per K-point 0.0602 ; proc-sec per K-point 0.9625
time1 = 0.00039315223693847656
time2 = 0.006268978118896484
sum of weights now :0.9999999999999977
############################################################
Iteration 11 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9419 ; per K-point 0.0589 ; proc-sec per K-point 0.9419
time1 = 0.0004322528839111328
time2 = 0.006994724273681641
sum of weights now :0.9999999999999978
############################################################
Iteration 12 out of 50
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.9395 ; per K-point 0.0671 ; proc-sec per K-point 1.0737
time1 = 0.000507354736328125
time2 = 0.00858449935913086
sum of weights now :0.9999999999999977
############################################################
Iteration 13 out of 50
processing 18 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 18 K-points on 16 processes: 1.0052 ; per K-point 0.0558 ; proc-sec per K-point 0.8935
time1 = 0.0005495548248291016
time2 = 0.008119583129882812
sum of weights now :0.9999999999999973
############################################################
Iteration 14 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9744 ; per K-point 0.0609 ; proc-sec per K-point 0.9744
time1 = 0.0004210472106933594
time2 = 0.007331132888793945
sum of weights now :0.9999999999999969
############################################################
Iteration 15 out of 50
processing 18 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 18 K-points on 16 processes: 1.0759 ; per K-point 0.0598 ; proc-sec per K-point 0.9564
time1 = 0.0005838871002197266
time2 = 0.006432771682739258
sum of weights now :0.9999999999999966
############################################################
Iteration 16 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9187 ; per K-point 0.0574 ; proc-sec per K-point 0.9187
time1 = 0.0004184246063232422
time2 = 0.007504701614379883
sum of weights now :0.9999999999999961
############################################################
Iteration 17 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.1463 ; per K-point 0.0546 ; proc-sec per K-point 0.8733
time1 = 0.0007946491241455078
time2 = 0.00751495361328125
sum of weights now :0.9999999999999958
############################################################
Iteration 18 out of 50
processing 15 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 15 K-points on 16 processes: 0.9011 ; per K-point 0.0601 ; proc-sec per K-point 0.9612
time1 = 0.0004413127899169922
time2 = 0.007570505142211914
sum of weights now :0.9999999999999953
############################################################
Iteration 19 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 1.0363 ; per K-point 0.0648 ; proc-sec per K-point 1.0363
time1 = 0.0004367828369140625
time2 = 0.00718998908996582
sum of weights now :0.999999999999995
############################################################
Iteration 20 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 1.0358 ; per K-point 0.0647 ; proc-sec per K-point 1.0358
time1 = 0.000614166259765625
time2 = 0.010774850845336914
sum of weights now :0.9999999999999951
############################################################
Iteration 21 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.1435 ; per K-point 0.0545 ; proc-sec per K-point 0.8712
time1 = 0.00045990943908691406
time2 = 0.0064296722412109375
sum of weights now :0.9999999999999947
############################################################
Iteration 22 out of 50
processing 9 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 9 K-points on 16 processes: 0.6841 ; per K-point 0.0760 ; proc-sec per K-point 1.2161
time1 = 0.00025534629821777344
time2 = 0.006756305694580078
sum of weights now :0.9999999999999948
############################################################
Iteration 23 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.1007 ; per K-point 0.0524 ; proc-sec per K-point 0.8387
time1 = 0.0003743171691894531
time2 = 0.024453163146972656
sum of weights now :0.9999999999999944
############################################################
Iteration 24 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.1451 ; per K-point 0.0520 ; proc-sec per K-point 0.8328
time1 = 0.0004999637603759766
time2 = 0.006907939910888672
sum of weights now :0.9999999999999931
############################################################
Iteration 25 out of 50
processing 24 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 24 K-points on 16 processes: 1.3307 ; per K-point 0.0554 ; proc-sec per K-point 0.8871
time1 = 0.00051116943359375
time2 = 0.0069239139556884766
sum of weights now :0.9999999999999928
############################################################
Iteration 26 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.1750 ; per K-point 0.0534 ; proc-sec per K-point 0.8545
time1 = 0.0005748271942138672
time2 = 0.007570981979370117
sum of weights now :0.9999999999999925
############################################################
Iteration 27 out of 50
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.8390 ; per K-point 0.0645 ; proc-sec per K-point 1.0326
time1 = 0.0002613067626953125
time2 = 0.005731105804443359
sum of weights now :0.9999999999999917
############################################################
Iteration 28 out of 50
processing 23 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 23 K-points on 16 processes: 1.2902 ; per K-point 0.0561 ; proc-sec per K-point 0.8975
time1 = 0.0006036758422851562
time2 = 0.008376359939575195
sum of weights now :0.9999999999999912
############################################################
Iteration 29 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9654 ; per K-point 0.0603 ; proc-sec per K-point 0.9654
time1 = 0.0003821849822998047
time2 = 0.0075571537017822266
sum of weights now :0.9999999999999912
############################################################
Iteration 30 out of 50
processing 17 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 17 K-points on 16 processes: 1.0531 ; per K-point 0.0619 ; proc-sec per K-point 0.9911
time1 = 0.00035834312438964844
time2 = 0.006093025207519531
sum of weights now :0.9999999999999909
############################################################
Iteration 31 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.8999 ; per K-point 0.0562 ; proc-sec per K-point 0.8999
time1 = 0.00042366981506347656
time2 = 0.013153553009033203
sum of weights now :0.9999999999999906
############################################################
Iteration 32 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9552 ; per K-point 0.0597 ; proc-sec per K-point 0.9552
time1 = 0.0005445480346679688
time2 = 0.008482694625854492
sum of weights now :0.9999999999999903
############################################################
Iteration 33 out of 50
processing 23 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 23 K-points on 16 processes: 1.2732 ; per K-point 0.0554 ; proc-sec per K-point 0.8857
time1 = 0.0005092620849609375
time2 = 0.00766444206237793
sum of weights now :0.9999999999999899
############################################################
Iteration 34 out of 50
processing 13 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 13 K-points on 16 processes: 0.8623 ; per K-point 0.0663 ; proc-sec per K-point 1.0613
time1 = 0.0004050731658935547
time2 = 0.008821487426757812
sum of weights now :0.999999999999989
############################################################
Iteration 35 out of 50
processing 21 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 21 K-points on 16 processes: 1.1386 ; per K-point 0.0542 ; proc-sec per K-point 0.8675
time1 = 0.0010080337524414062
time2 = 0.008414506912231445
sum of weights now :0.9999999999999881
############################################################
Iteration 36 out of 50
processing 20 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 20 K-points on 16 processes: 1.2171 ; per K-point 0.0609 ; proc-sec per K-point 0.9737
time1 = 0.0004181861877441406
time2 = 0.006475687026977539
sum of weights now :0.9999999999999879
############################################################
Iteration 37 out of 50
processing 23 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 23 K-points on 16 processes: 1.2432 ; per K-point 0.0541 ; proc-sec per K-point 0.8649
time1 = 0.0004534721374511719
time2 = 0.005987644195556641
sum of weights now :0.9999999999999877
############################################################
Iteration 38 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 1.0241 ; per K-point 0.0640 ; proc-sec per K-point 1.0241
time1 = 0.0017774105072021484
time2 = 0.008902549743652344
sum of weights now :0.999999999999987
############################################################
Iteration 39 out of 50
processing 19 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 19 K-points on 16 processes: 1.0403 ; per K-point 0.0548 ; proc-sec per K-point 0.8760
time1 = 0.0005784034729003906
time2 = 0.008667469024658203
sum of weights now :0.9999999999999868
############################################################
Iteration 40 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9629 ; per K-point 0.0602 ; proc-sec per K-point 0.9629
time1 = 0.0005514621734619141
time2 = 0.0064373016357421875
sum of weights now :0.9999999999999867
############################################################
Iteration 41 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.1672 ; per K-point 0.0531 ; proc-sec per K-point 0.8489
time1 = 0.0005512237548828125
time2 = 0.006586551666259766
sum of weights now :0.9999999999999866
############################################################
Iteration 42 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9174 ; per K-point 0.0573 ; proc-sec per K-point 0.9174
time1 = 0.0005207061767578125
time2 = 0.009336233139038086
sum of weights now :0.9999999999999869
############################################################
Iteration 43 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.1425 ; per K-point 0.0519 ; proc-sec per K-point 0.8309
time1 = 0.0003917217254638672
time2 = 0.005223989486694336
sum of weights now :0.9999999999999867
############################################################
Iteration 44 out of 50
processing 24 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 24 K-points on 16 processes: 1.2278 ; per K-point 0.0512 ; proc-sec per K-point 0.8186
time1 = 0.0005261898040771484
time2 = 0.0066165924072265625
sum of weights now :0.9999999999999867
############################################################
Iteration 45 out of 50
processing 14 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 14 K-points on 16 processes: 0.8532 ; per K-point 0.0609 ; proc-sec per K-point 0.9751
time1 = 0.00037670135498046875
time2 = 0.007611513137817383
sum of weights now :0.9999999999999867
############################################################
Iteration 46 out of 50
processing 24 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 24 K-points on 16 processes: 1.2224 ; per K-point 0.0509 ; proc-sec per K-point 0.8149
time1 = 0.0005724430084228516
time2 = 0.0076825618743896484
sum of weights now :0.9999999999999863
############################################################
Iteration 47 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.2220 ; per K-point 0.0555 ; proc-sec per K-point 0.8888
time1 = 0.00044608116149902344
time2 = 0.0063169002532958984
sum of weights now :0.9999999999999866
############################################################
Iteration 48 out of 50
processing 22 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 22 K-points on 16 processes: 1.2145 ; per K-point 0.0552 ; proc-sec per K-point 0.8832
time1 = 0.0005602836608886719
time2 = 0.007936716079711914
sum of weights now :0.9999999999999866
############################################################
Iteration 49 out of 50
processing 24 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 24 K-points on 16 processes: 1.4315 ; per K-point 0.0596 ; proc-sec per K-point 0.9543
time1 = 0.0005948543548583984
time2 = 0.007570981979370117
sum of weights now :0.9999999999999865
############################################################
Iteration 50 out of 50
processing 16 K points : using 16 processes.
# K-points calculated Wall time (sec) Est. remaining (sec) Est. total (sec)
time for processing 16 K-points on 16 processes: 0.9495 ; per K-point 0.0593 ; proc-sec per K-point 0.9495
time1 = 0.0004119873046875
Totally processed 954 K-points
run() finished
[28]:
from matplotlib import pyplot as plt
import numpy as np
fig, axes = plt.subplots(1, 1, sharey=False, sharex=True, figsize=(10, 8))
res = np.load(f"results/Fe-soc-001-ahc_int_iter-{i:04d}.npz")
Efermi = res['Energies_0']
ahc001 = res["data"]
axes.plot(Efermi - EF, ahc001[:,2]/100, label="001", color="green")
res = np.load(f"results/Fe-soc-111-ahc_int_iter-{i:04d}.npz")
Efermi = res['Energies_0']
ahc111 = res["data"].sum(axis=1)/np.sqrt(3) # all three components are equal by symmetry
axes.plot(Efermi - EF, ahc111/100, label="111", color="blue")
axes.set_title("AHC internal terms convergence")
axes.set_ylim(-1000, 0)
axes.set_xlabel("E-EF (eV)")
axes.set_ylabel("AHC (S/cm)")
axes.legend()
[28]:
<matplotlib.legend.Legend at 0x76cbf0201610>
We see that there is some difference, although it is not big. Moreover, we did not do a good convergence, so cannot draw any strong conclusions from this data. One needs to start from a denser k-point grid and more iterations to get converged results. Also, the starting DFT nscf grid should be denser.
